DOUBLE BRAID PTFE COAXIAL CABLE

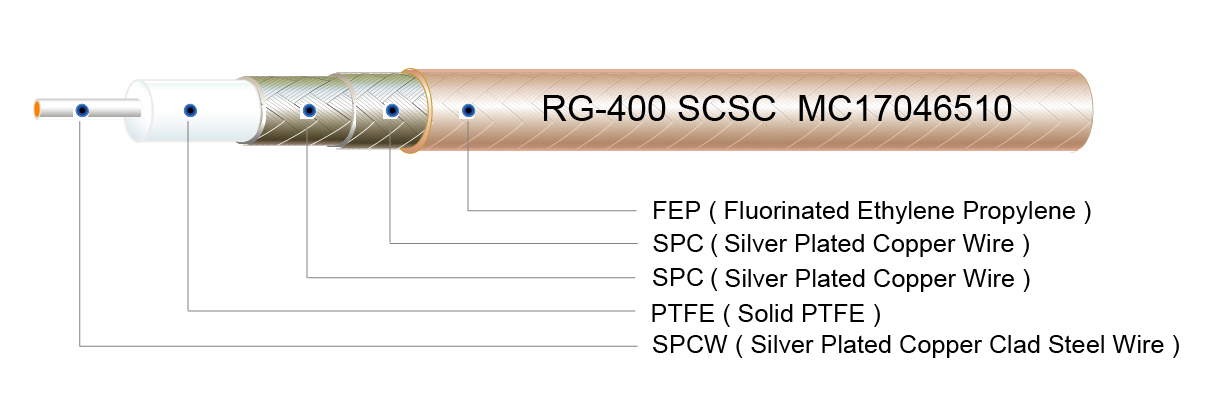

Physical Structure			RG-179SCSC		RG-316SCSC		RG-142SCSC		RG-400SCSC
Physical Structure			RG-179TCTC		RG-316TCTC		RG-142TCTC		RG-400TCTC
Center Conductor		Materia	SPCW ( : SCCS )		SPCW ( : SCCS )		SPCW ( : SCCS )		SPCW ( : SCCS )
		Structure	( 7/0.0040inch ) / ( 7/0.102mm )		( 7/0.0067 inch ) / ( 7/0.17mm )		Solid		( 19/0.008inch ) / ( 19/0.203mm )
		Diameter	0.31 mm	0.0120 inch	0.51 mm	0.0201 inch	0.94 mm	0.0370 inch	0.98 mm	0.0384 inch
Dielectric		Solid PTFE	1.60 mm	0.063 inch	1.52 mm	0.060 inch	2.95 mm	0.116 inch	2.95 mm	0.116 inch
Inner Shield	SCSC	Silver Plated Copper Wire	2.01 mm	0.079 inch	2.00 mm	0.079 inch	3.60 mm	0.142 inch	3.60 mm	0.142 inch
Inner Shield	TCTC	Tin Plated Copper Wire	2.01 mm	0.079 inch	2.00 mm	0.079 inch	3.60 mm	0.142 inch	3.60 mm	0.142 inch
Outer Shield	SCSC	Silver Plated Copper Wire	2.49 mm	0.098 inch	2.34 mm	0.092 inch	4.20 mm	0.165 inch	4.20 mm	0.165 inch
Outer Shield	TCTC	Tin Plated Copper Wire	2.49 mm	0.098 inch	2.34 mm	0.092 inch	4.20 mm	0.165 inch	4.20 mm	0.165 inch
Jacket		FEP	3.00 mm	0.118 inch	2.90 mm	0.114 inch	4.95 mm	0.195 inch	4.95 mm	0.195 inch
Weight			22.8 Kg/Km	6.9 Kg/1000ft	23.0 Kg/Km	7.0 Kg/1000ft	64.0 Kg/Km	19.5 Kg/1000ft	64.0 Kg/Km	19.5 Kg/1000ft
Temperature Range (℃)			-55 ~ +200℃		-55 ~ +200℃		-55 ~ +200℃		-55 ~ +200℃
Minimum Bend Radius			15.2 mm	0.6 inch	15.2 mm	0.6 inch	25.4 mm	1.0 inch	25.4 mm	1.0 inch
Electrical Data			RG-179SCSC / TCTC		RG-316SCSC / TCTC		RG-142SCSC / TCTC		RG-400SCSC / TCTC
Impedance (Ohms)			75 Ω		50 Ω		50 Ω		50 Ω
Capacitance (pF/ft.)			64.0 pF/M	19.5 pF/ft	96.5 pF/M	29.4 pF/ft	96.5 pF/M	29.4 pF/ft	96.5 pF/M	29.4 pF/ft
Velocity of propagation ( % )			70 %		70 %		70 %		70 %
